The Brass Ceiling Shower Head is precision-cast from solid 59A brass. The panel is integrally formed, with CNC-chamfered corners. The center features densely perforated rain showerheads, while long side channels provide a waterfall showerhead. The standard design measures 630 x 390 mm, and the thickness is approximately 10–12 mm. Custom dimensions and openings can be customized according to engineering drawings. This rectangular showerhead is concealed within the ceiling.

Brass Ceiling Shower Head Parameter

Brass Ceiling Shower Head Features

All-Brass Body

The Brass Ceiling Shower Head is constructed from HPb59-1 brass, with a pressure resistance of ≥1.0 MPa, a long-term operating pressure of 0.1–0.6 MPa, and a temperature resistance of 0–80°C. The brass tubing resists dezincification and stress cracking better than zinc alloy, making it suitable for frequent commercial use and reducing leakage risk and maintenance costs.

Ultra-thin recessed structure

The Brass Ceiling Shower Head panel is 10–12 mm thick, with a recommended concealed installation depth of 60–80 mm. It comes with a stainless steel mounting frame and anti-seepage strips, allowing it to be flush with the ceiling once installed, leaving only a neat rectangular water outlet. It's ideal for modern minimalist ceiling designs and narrow ceiling heights.

Dual Waterfall Modes

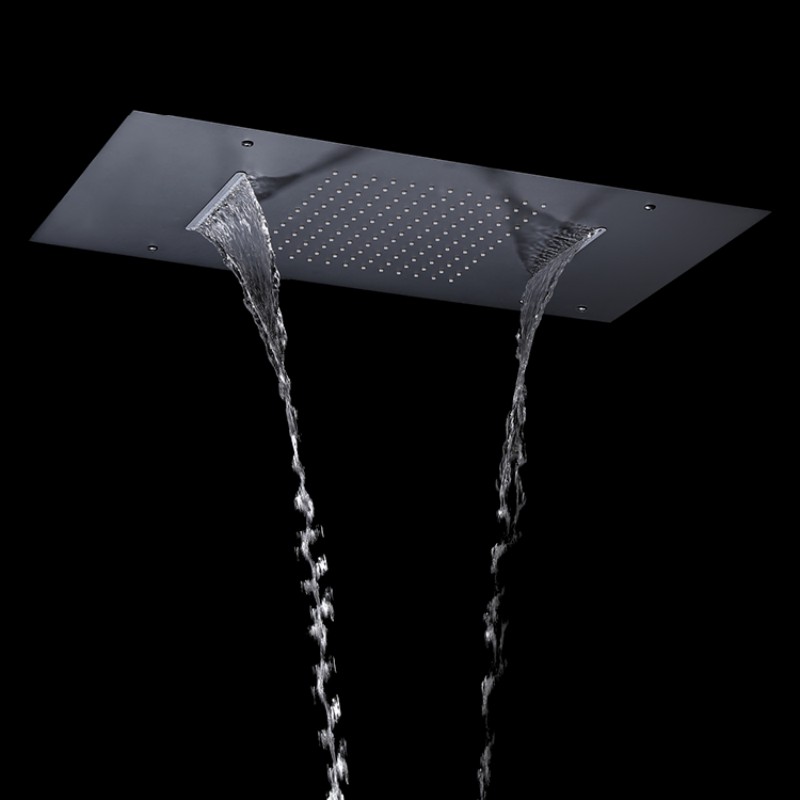

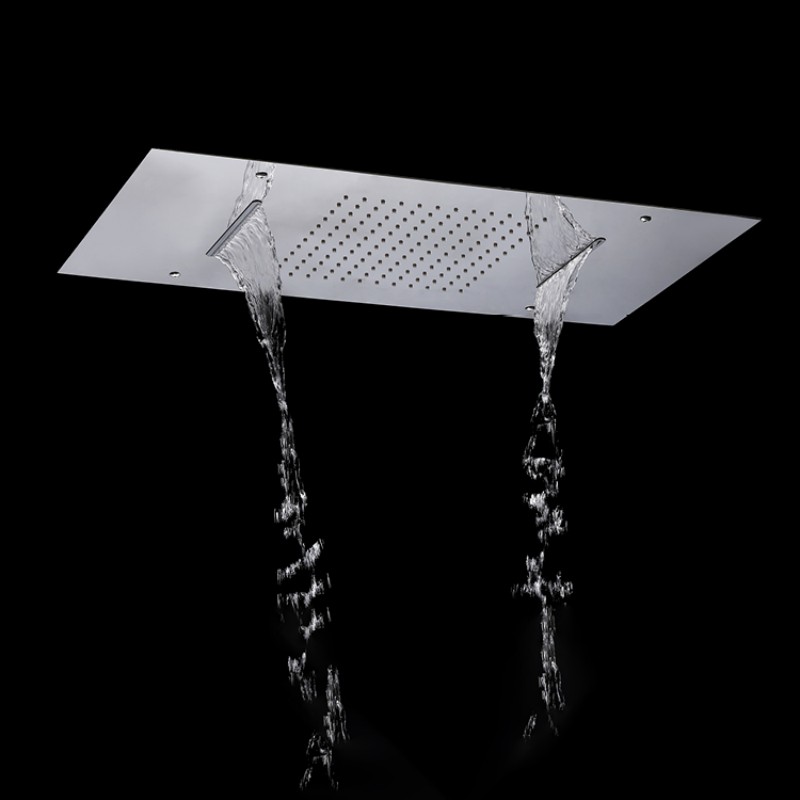

The Brass Ceiling Shower Head features independent flow channels, offering both "Rain" and "Waterfall" modes. The recommended flow rate for the Rain shower is 8–12 L/min (0.3 MPa), covering an area approximately 330 x 230 mm. The recommended flow rate for the Waterfall shower is 12–15 L/min per side, with a water curtain width of approximately 25–30 mm. It can be switched between single and dual modes when used with a three-way diverter valve or thermostatic valve.

Anti-Scale Silicone Nozzles

The nozzles are made of scale-resistant medical-grade silicone (Shore A 50±5), with a nozzle diameter of 0.6–0.8 mm, allowing for easy removal of scale with a simple finger rub. The nozzle array is evenly spaced, ensuring uniform water distribution over large surfaces and minimizing drift, maintaining a stable water pattern even in hard water areas.

Corrosion-Resistant Surface Finish

The electroplated chrome/brushed nickel finish has passed a neutral salt spray test for ≥96 hours; the PVD brushed gold finish has a hardness of ≥HV180 and is scratch and fingerprint resistant; the matte black powder coating has an adhesion rating of ≥4B. Multiple finishes complement various bathroom styles, enhancing the aesthetics of model homes and sales offices.

International Connectors

The water inlet features a G1/2" dual-way (optional NPT1/2") connection, directly compatible with mainstream thermostatic valves and manifolds. The recommended inlet water temperature is 38–45°C, and the optimal operating pressure is 0.3–0.5 MPa. Seals and fixing bolts are included to reduce on-site fitting time.

Silent Downstream Flow Channel

The Brass Ceiling Shower Head's internal flow channel features a sharp, rounded transition, resulting in a flow noise level of ≤30 dB(A) at 0.3 MPa (tested in a laboratory cabinet), ensuring no disturbance during nighttime use. The back panel is covered with 5 mm thermal insulation to reduce the risk of condensation accumulation in the ceiling and protect the wood and metal keels.

Engineering-Grade Customization

The Brass Ceiling Shower Head supports custom sizes ranging from 300×300 to 1200×500 mm. We can customize the nozzle layout, waterfall slot position, water inlet direction, logo etching, and mounting hole spacing. Construction cutout drawings (DXF/PDF) and BIM family (Revit) files are provided to facilitate integration with MEP details.

Brass Ceiling Shower Head Application

Five-Star Hotel Guest Room Shower

The Brass Ceiling Shower Head is suitable for standard guest room showers at Hilton, Marriott, and Hyatt hotels. It delivers a stable, large-scale rain shower at 0.3–0.5 MPa. The panel and finish can be customized to suit the room's theme, offering a long maintenance cycle and compatibility with centralized hot water systems and circulation pumps.

City Luxury Home/High-End Apartment Master Bathroom

For high-end residential master bathrooms, a 630×390 mm or larger size is recommended. Brass Ceiling Shower Heads paired with thermostatic valves ensure a constant water temperature. Matte black or brushed nickel complements stone, rock slabs, and wood finishes, enhancing sales conversion and the visual appeal of model homes.

Single Spa Treatment Room

The waterfall mode delivers 12–15 L/min per side, ideal for shoulder and neck therapy. Combined with aromatherapy treatments, it increases per-guest time value. PVD brushed gold or brushed nickel finishes are recommended for their corrosion resistance and high-end aesthetic, facilitating differentiated pricing for members.

Seaside Resort Villa Bathroom

PVD or chrome finishes (salt spray ≥ 96 hours) are recommended for coastal environments with high salt spray. The brass interior is corrosion-resistant and withstands long-term exposure to sea breezes and humid climates. Custom sizes are available to accommodate pitched roofs or mezzanines, maintaining a cohesive architectural look.

High-load Gym Public Area Shower

Public area showers, operating hundreds of times daily, require durability and quick maintenance. The anti-scaling silicone nozzle can be manually squeezed to remove scale, minimizing downtime. The standard G1/2" connector facilitates connection to a centralized water mixing center or constant pressure water supply system, simplifying retrofitting.

More Details about Brass Ceiling Shower Head
