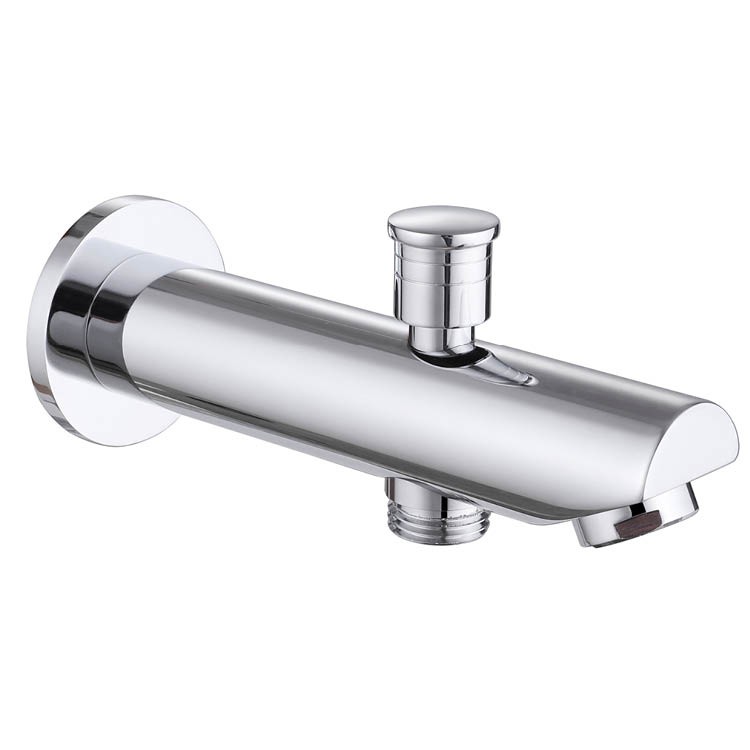

A Wall Mounted Spout With Diverter is a compact water outlet designed to discharge water from a concealed wall supply while allowing manual switching between different water paths. This model features a cylindrical spout body with a smooth, continuous profile and a top-mounted pull-up diverter knob. The spout extends horizontally from the wall and directs water downward through a slightly angled outlet, offering a controlled and intuitive flow experience. During use, the diverter provides clear tactile feedback, enabling users to easily redirect water without interrupting the main water supply, resulting in a stable and predictable interaction.

Wall Mounted Spout With Diverter Features

Integrated Manual Diverter Mechanism

The spout incorporates a vertically positioned diverter knob mounted on the upper surface of the body. The knob height appears to be approximately 25–30 mm, providing sufficient grip for wet-hand operation. Internally, the diverter mechanism is designed to withstand repeated actuation cycles, typically exceeding 50,000 operations under standard residential water pressures of 0.3–0.6 MPa.

Cylindrical Full-Bore Spout Body

The main spout adopts a round tubular geometry with a consistent diameter estimated at 35–40 mm. This full-bore internal channel supports steady water delivery while reducing internal flow restriction. The rounded form distributes internal pressure evenly across the body, helping maintain structural stability at working pressures up to 1.6 MPa.

Precision Threaded Bottom Outlet

A downward-facing threaded outlet is integrated beneath the spout body, conforming to standard G1/2 thread specifications. The visible thread depth and clean machining indicate controlled tolerances, ensuring secure sealing when connected to compatible fittings. This configuration supports leak-resistant performance during long-term operation.

High-Polish Chrome Surface Treatment

The spout surface exhibits a uniform chrome finish with high reflectivity and smooth transitions between curved sections. The plating quality suggests a multi-layer electroplating process with a coating thickness generally above 0.25 μm, enhancing resistance to corrosion, moisture exposure, and routine cleaning abrasion.

Wall Mounted Spout With Diverter Application

Residential Shower and Bath Combinations

In home bathroom setups, this wall mounted spout with diverter is commonly used where a single water outlet must serve multiple functions. The diverter allows seamless switching between water discharge paths while maintaining consistent flow and temperature.

Bathtub Filling Installations

The angled outlet directs water efficiently into bathtubs, minimizing splash and wall runoff. The cylindrical body provides a visually balanced appearance above the tub edge while ensuring reliable filling performance.

Concealed Plumbing Bathroom Designs

For bathrooms with in-wall pipe routing, this spout acts as the visible termination point of the water supply. Its compact projection and integrated diverter reduce the need for additional exposed fittings, keeping wall surfaces clean and uncluttered.

Hospitality and Multi-Unit Bathrooms

In hotels and serviced residences, the spout offers durability suitable for high-frequency daily use. The robust diverter mechanism and solid body construction support consistent operation across multiple rooms with uniform appearance.

Bathroom Renovation Projects

During upgrades, this type of spout can replace older non-diverter models without extensive plumbing changes. The standardized thread connections allow compatibility with existing wall outlets while adding functional flexibility to the water system.
