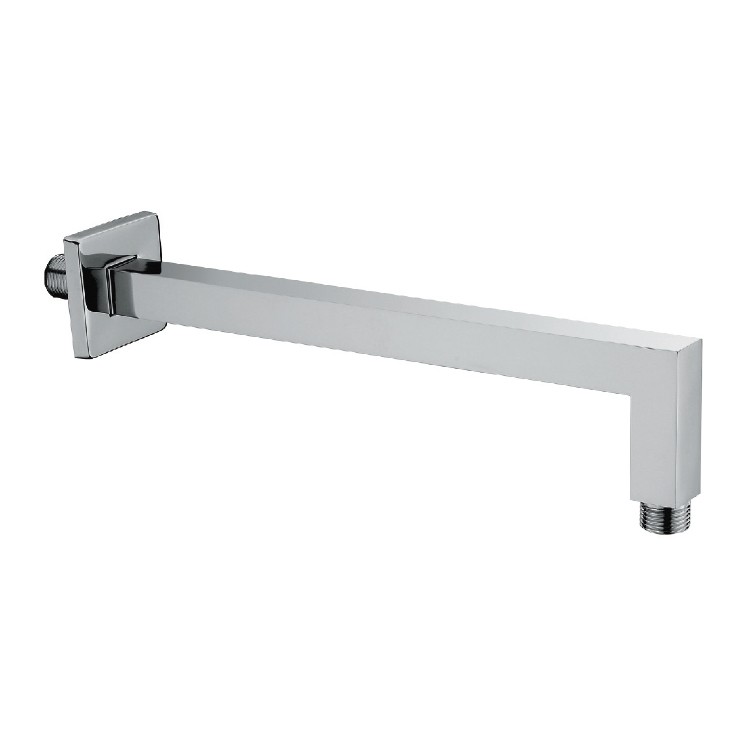

Custom Shower Arm is a wall-mounted plumbing extension designed to position a fixed shower head at a specific distance and height from the wall based on project requirements. This model features a straight horizontal arm combined with a vertical drop outlet, forming an L-shaped structure. The arm connects to the wall through a square mounting base and extends outward before directing water downward to the shower head. Once installed, it defines a precise spray location and maintains a stable, fixed orientation, giving users a consistent showering position while supporting tailored bathroom layouts.

Custom Shower Arm Parameter

Custom Shower Arm Features

Extended Reach

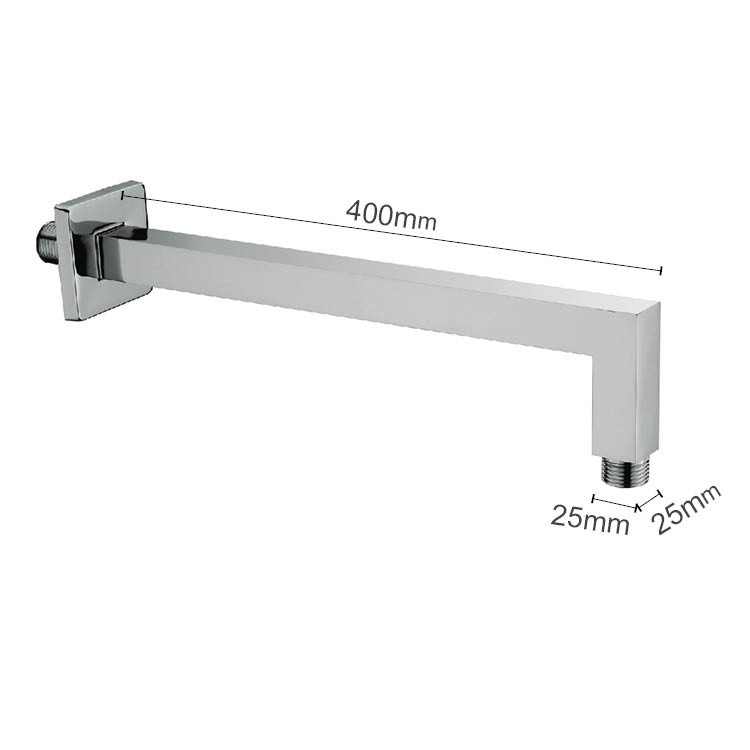

Extended Reach - The marked length of approximately 400 mm indicates a long projection from the wall, allowing the shower head to be positioned deeper into the shower area. Compared to shorter arms under 300 mm, a 400 mm reach can shift the spray center forward by more than 30 percent, improving coverage and reducing water contact with walls or shower doors. This extended spacing enhances user comfort, especially in wider or walk-in shower enclosures.

Square Geometry

Square Geometry - The arm displays a square cross-section measuring roughly 25 mm by 25 mm along both the horizontal and vertical segments. This shape increases torsional stiffness compared to round profiles of similar size. The square geometry helps the arm resist twisting forces generated by water flow and shower head weight, improving structural stability under continuous operation and minimizing long-term alignment drift.

Vertical Drop

Vertical Drop - The downward outlet section creates a clear vertical separation between the arm and the shower head connection point. This configuration allows water to exit in a controlled downward direction, reducing strain on the threaded joint. The vertical drop also improves compatibility with overhead shower heads by aligning the spray direction more centrally above the user’s standing position.

Standard Threads

Standard Threads - The visible threaded connections at both the wall inlet and the outlet are consistent with G1/2 standards, featuring an outer diameter close to 20.95 mm. This ensures compatibility with common plumbing systems and shower heads. Proper thread depth supports reliable sealing under operating pressures typically ranging from 0.2 to 0.6 MPa, reducing leakage risk during long-term use.

Polished Surface

Polished Surface - The exterior shows a smooth, reflective finish with clean edges and flat planes. Polished metal surfaces used in bathroom fittings typically achieve low surface roughness, which limits mineral adhesion in hard water environments above 100 ppm. This finish also simplifies cleaning and maintains a uniform appearance despite frequent exposure to moisture and temperature changes.

Custom Shower Arm Application

Home Bathroom

Home Bathroom - In residential installations, this custom shower arm allows precise control over shower head placement. The extended reach and vertical drop position the spray more centrally over the user, improving daily shower comfort and ensuring consistent water distribution.

Walk-In Shower

Walk-In Shower - In walk-in shower layouts, proper spray positioning is critical to prevent water from escaping the open area. The 400 mm horizontal extension places the shower head farther inward, helping contain water flow and reducing floor wetting outside the shower zone.

Renovation Project

Renovation Project - During bathroom renovations, existing wall outlet positions may not align with modern shower layouts. This custom arm adapts the spray location without requiring changes to internal plumbing, allowing installers to update functionality while preserving wall structure.

Hotel Bathroom

Hotel Bathroom - In hospitality environments, fixtures must deliver consistent performance for users of varying heights. The fixed geometry of this arm ensures a predictable spray position, reducing guest complaints and simplifying maintenance by eliminating adjustable components.

Luxury Bathroom

Luxury Bathroom - In high-end bathroom designs, visual symmetry and precise alignment are essential. The straight lines and defined angles of this arm support clean architectural layouts, contributing to a structured and intentional shower presentation.

Commercial Shower

Commercial Shower - In commercial shower facilities, durability and stability are priorities. The rigid construction and square profile support frequent use and higher flow rates, maintaining alignment under repeated pressure cycles and daily operation.

Custom Build

Custom Build - In custom-built bathrooms or specialized projects, this shower arm provides flexibility in achieving specific reach and height requirements. Its standardized connections combined with tailored geometry allow designers and installers to meet exact spatial and functional goals without compromise.
