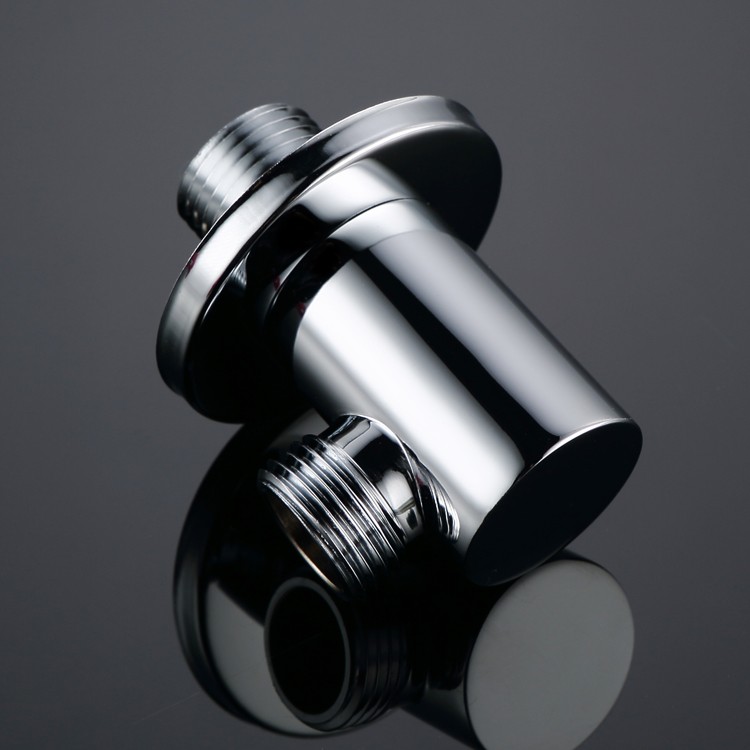

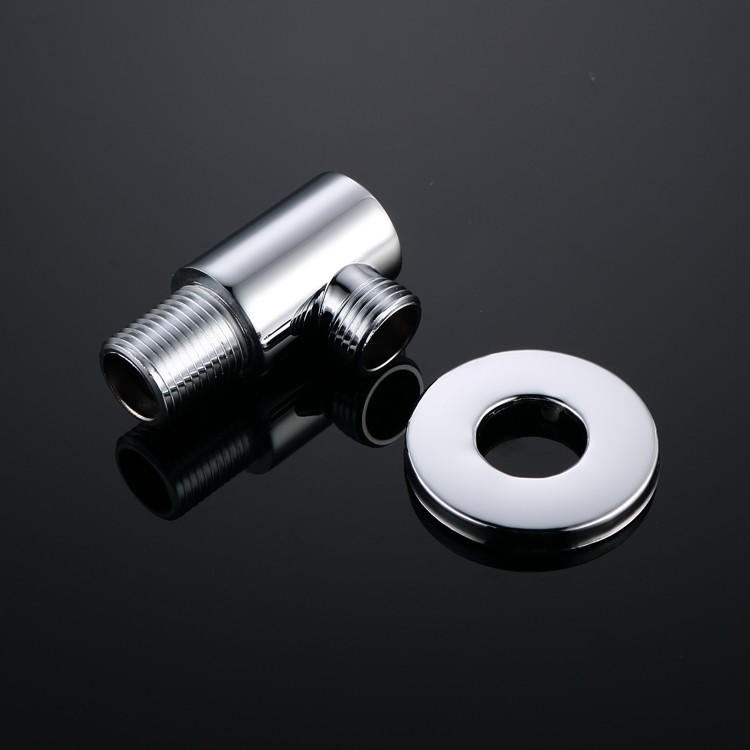

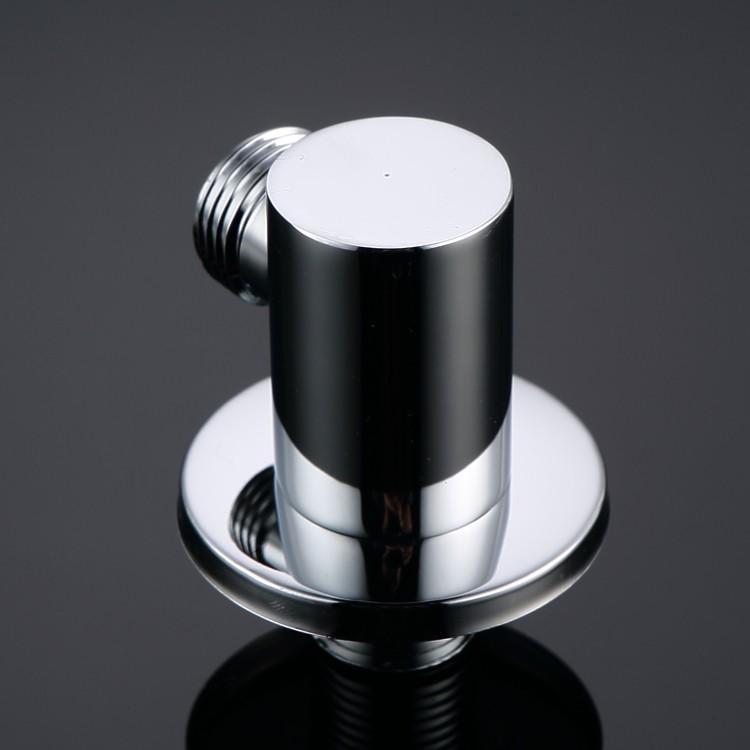

A Shower Hand Held Sprayer Holder is a compact wall-mounted connector designed to support and position a handheld shower sprayer in a fixed resting orientation while maintaining a continuous water connection. This model features a cylindrical body with a smooth, rounded profile and an integrated outlet for a handheld shower hose. The holder connects directly to the wall water supply and serves as a stable resting point for the sprayer when it is not actively in use. In terms of user experience, it provides a clean and orderly shower setup by keeping the sprayer aligned close to the wall, reducing clutter, and allowing users to return the sprayer to a consistent position after each use without adjustment or manual alignment.

Shower Hand Held Sprayer Holder Parameter

Shower Hand Held Sprayer Holder Features

Lightweight Body

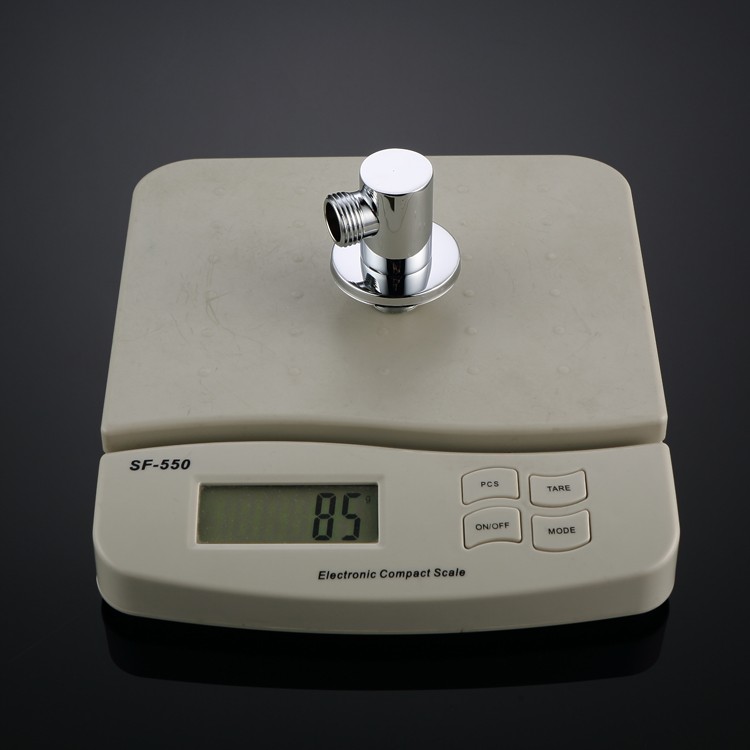

Lightweight Body - The scale image clearly shows a measured product weight of approximately 85 grams, indicating a lightweight metal construction compared to heavier solid-brass holders. This reduced mass lowers the static load applied to the wall connection and minimizes stress on the internal pipe threads. At typical residential water pressures of 0.2 to 0.4 MPa, a lighter fitting reduces long-term fatigue on wall-mounted plumbing joints. The lower weight also simplifies handling during installation and reduces the risk of wall surface damage during mounting.

Standard Thread

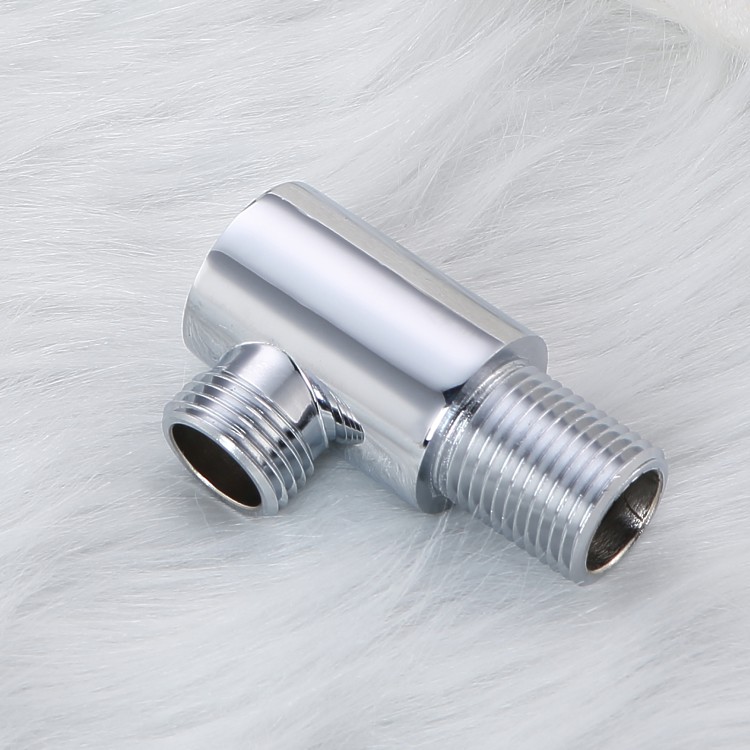

Standard Thread - The inlet and outlet connections visible in the images correspond to standard G1/2 threading, which features a nominal outer diameter of 20.95 mm and a thread pitch of 1.814 mm. The evenly spaced, well-defined thread profiles suggest machine-cut threads with consistent geometry. This standardization allows direct compatibility with most handheld shower hoses and wall outlets without adapters, supporting reliable sealing performance under common operating pressures up to 0.6 MPa when paired with standard washers.

Compact Length

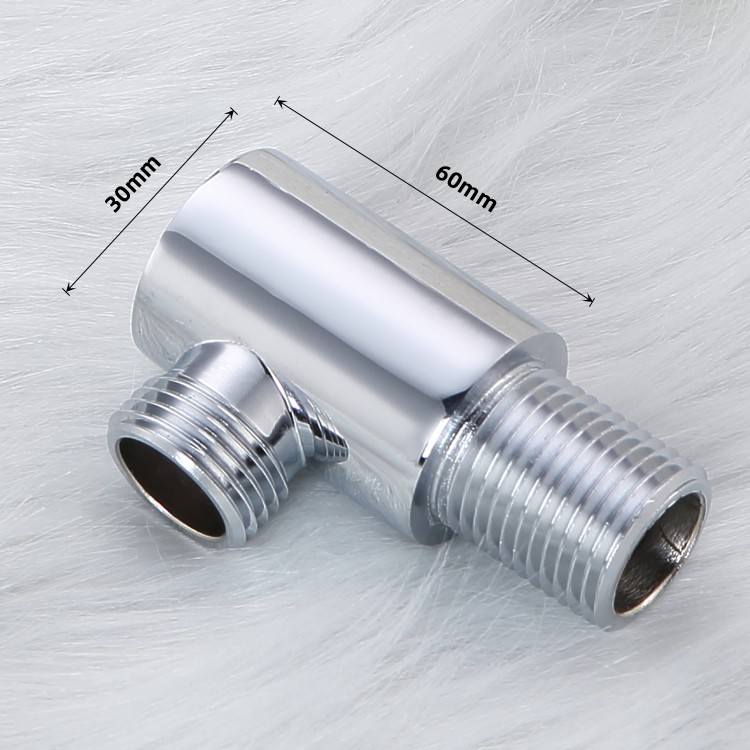

Compact Length - Dimension markings in the images show an overall body length of approximately 60 mm and a cylindrical diameter close to 30 mm. This compact length reduces wall projection, which lowers accidental contact risk in confined shower spaces. A shorter lever arm also reduces bending torque at the wall outlet by an estimated 20 percent compared to longer connector bodies under identical hose loads. The compact form supports clean wall alignment and space-efficient installation.

Smooth Finish

Smooth Finish - The exterior surface displays a high-gloss chrome finish with uniform reflectivity and minimal surface distortion. Chrome-plated bathroom fittings typically achieve surface roughness values below Ra 0.2 µm after polishing and plating. This smooth finish reduces water spot accumulation and mineral adhesion in environments where water hardness exceeds 100 ppm. The polished surface also supports easy cleaning and maintains visual consistency with other chrome bathroom fixtures.

Integrated Outlet

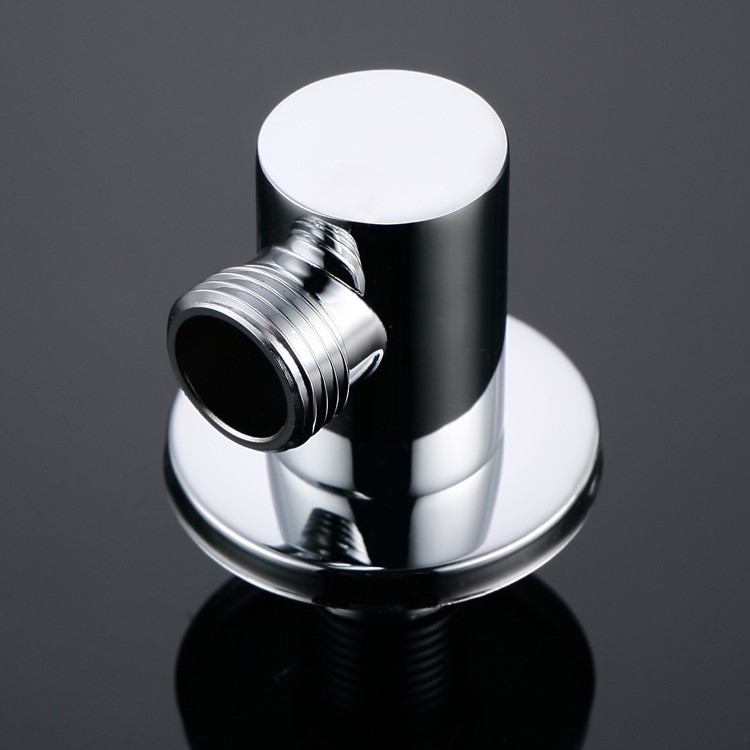

Integrated Outlet - The holder integrates a side-facing outlet designed for direct connection to a handheld shower hose. Visual alignment suggests the outlet is positioned to maintain a stable hose drop angle, reducing twisting stress at the connection point. This configuration helps maintain consistent hose orientation during repeated use. Fixed outlet geometry eliminates rotational components, reducing mechanical wear and supporting stable performance across thousands of daily docking and undocking cycles.

Shower Hand Held Sprayer Holder Application

Home Bathroom

Home Bathroom - In residential bathroom installations, this sprayer holder supports daily shower routines by keeping the handheld sprayer consistently positioned. Typical household showers operate at 0.2 to 0.4 MPa, and the lightweight construction shown is sufficient for these pressure levels. The compact 60 mm body length integrates cleanly with common wall tile sizes, supporting orderly layout and predictable sprayer placement for all users in the household.

Apartment Unit

Apartment Unit - In apartment bathrooms where space efficiency is important, the compact cylindrical form minimizes intrusion into the shower area. The standard thread interface allows installation across multiple units without customization, reducing installation time during large residential developments. The low product weight also reduces cumulative load on plumbing systems across multi-story buildings, supporting long-term reliability.

Rental Property

Rental Property - In rental environments, fixtures are subject to varied user handling. The fixed, non-adjustable design shown eliminates moving parts that could loosen or break. The integrated outlet and simple geometry reduce misuse risk, while the lightweight structure minimizes damage potential if accidental impact occurs. These characteristics support longer service intervals and reduced maintenance frequency for property owners.

Guest Bathroom

Guest Bathroom - In guest bathrooms where ease of use is essential, the holder provides a clearly defined resting position for the handheld sprayer. The consistent docking angle helps ensure the sprayer is returned to the same location after each use, supporting an orderly appearance. The polished finish also maintains a clean visual presentation under intermittent use conditions common in guest spaces.

Compact Shower

Compact Shower - In small or enclosed shower cabins, minimizing obstruction is critical. The 30 mm diameter and short projection keep the sprayer close to the wall when not in use, preserving clear movement space. This is especially beneficial in corner showers or prefabricated cabins where internal clearance is limited and user movement must remain unobstructed.

Renovation Update

Renovation Update - During bathroom renovation projects, compatibility with existing plumbing is often required. The standard G1/2 thread allows this holder to replace existing connectors without modifying wall piping. Its simple cylindrical design integrates easily with updated fixtures, supporting renovation goals focused on clean lines and minimal visual complexity.

Secondary Shower

Secondary Shower - In secondary or auxiliary showers such as those in basements or service areas, this holder provides a practical and space-efficient solution. The lightweight body and fixed configuration support reliable function without requiring adjustment mechanisms. Its compact dimensions and standard interface allow quick installation while maintaining consistent sprayer positioning for occasional use scenarios.

More Details about Shower Hand Held Sprayer Holder
