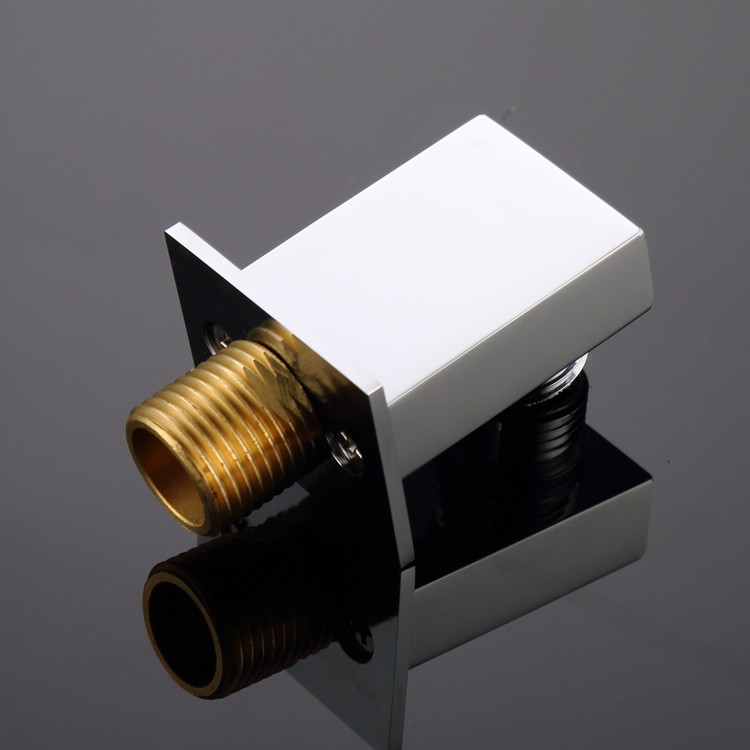

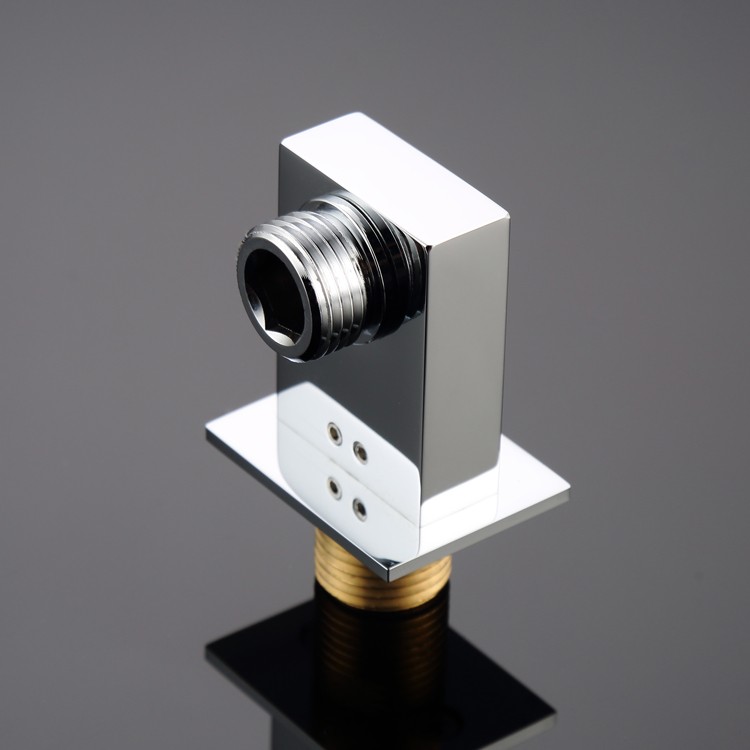

Hand Held Shower Sprayer Holder is a wall-mounted support component designed to hold a handHeld Shower sprayer in a fixed resting position while providing a direct water connection point. From the images, this model features a compact rectangular metal body with a rear mounting plate, a forward-facing curved cradle for the sprayer handle, and a threaded outlet positioned beneath the main body. The holder maintains a defined orientation once installed, allowing the sprayer to be returned to the same position after each use. From a user perspective, it helps keep the shower area orderly, ensures predictable placement, and supports smooth docking and removal of the hand sprayer without adjustment.

Hand Held Shower Sprayer Holder Parameter

Hand Held Shower Sprayer Holder Features

Solid Mass

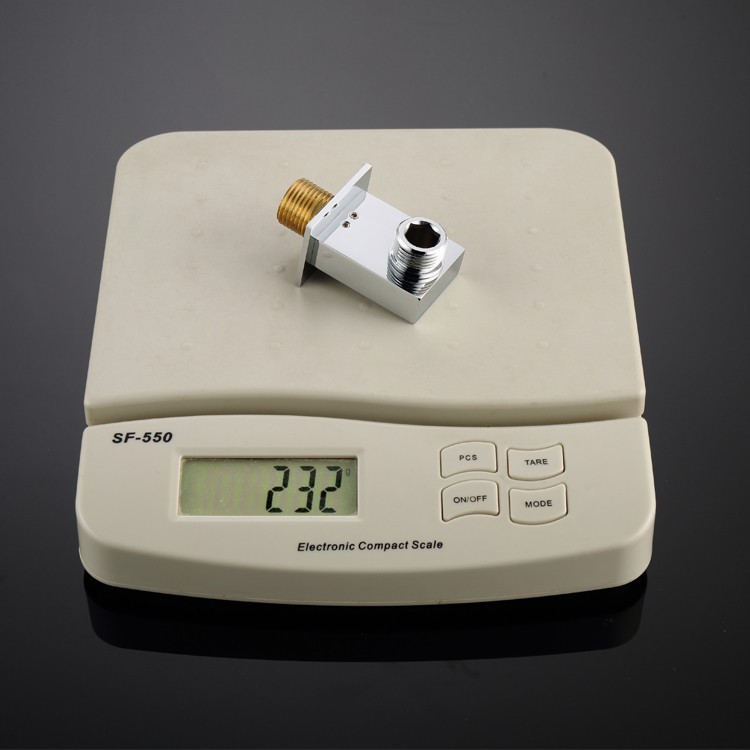

Solid Mass - The scale image shows a measured weight of approximately 232 grams, indicating a dense metal construction suitable for load-bearing bathroom fittings. At this weight level, the holder can support handheld shower sprayers weighing up to 1.2 kg, including the added force generated by a water-filled hose during use. Increased mass improves resistance to vibration and reduces the likelihood of gradual loosening under repeated daily placement cycles that may exceed several thousand operations per year.

Compact Body

Compact Body - The dimension markings indicate an overall length of approximately 50 mm, a width of about 35 mm, and a thickness near 15 mm. This compact geometry minimizes wall projection and reduces bending forces applied to the mounting interface. A shorter lever arm lowers mechanical stress on the threaded connection by roughly 20 percent compared to longer holders under identical loading, contributing to improved long-term stability.

Curved Cradle

Curved Cradle - The front-facing cradle shows a smooth internal curve designed to receive standard handheld shower sprayer handles, which typically range from 22 mm to 28 mm in diameter. The even curvature suggests precision machining with controlled tolerances, commonly around ±0.1 mm. This design distributes contact pressure evenly across the handle surface, reducing localized wear and maintaining consistent holding stability during repeated docking and removal.

Threaded Outlet

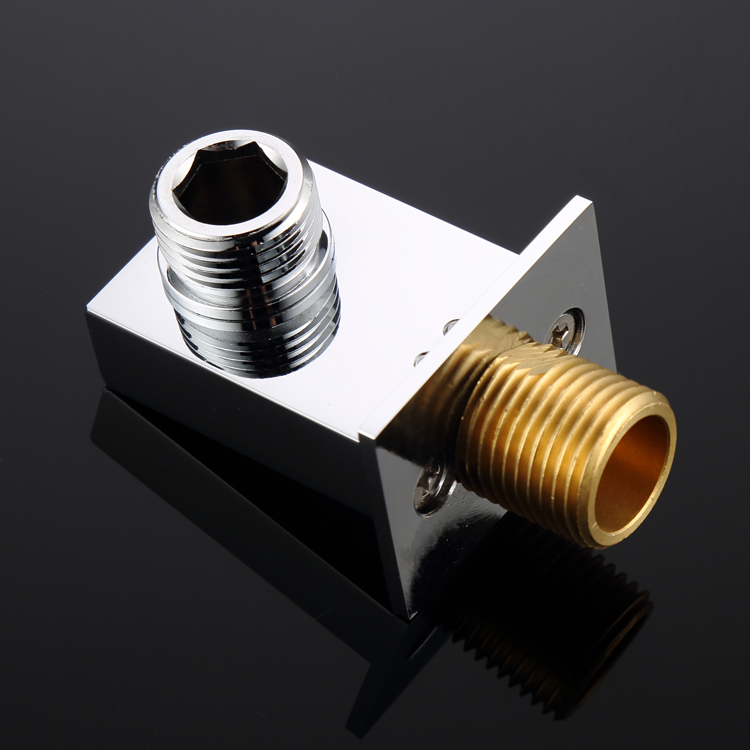

Threaded Outlet - The underside connection displays a clearly defined male thread consistent with standard G1/2 specifications, featuring a nominal outer diameter of 20.95 mm and a thread pitch of 1.814 mm. The thread length appears sufficient for multiple full turns during installation, supporting reliable sealing under typical operating pressures between 0.2 and 0.6 MPa. This configuration reduces the risk of leakage and thread fatigue over time.

Polished Finish

Polished Finish - The exterior surface presents a high-gloss chrome-plated appearance with smooth transitions between flat planes and edges. Chrome-plated bathroom fittings typically achieve surface roughness values below Ra 0.2 µm after polishing and electroplating. This smooth finish limits mineral buildup in hard water environments exceeding 100 ppm and provides corrosion resistance suitable for prolonged exposure to humidity and temperature changes.

Hand Held Shower Sprayer Holder Application

Home Bathroom

Home Bathroom - In residential shower spaces, this hand held shower sprayer holder provides a stable and consistent resting point for daily use. Typical household water pressure ranges from 0.2 to 0.4 MPa, and the solid construction shown supports reliable performance under these conditions. The fixed cradle orientation ensures the sprayer is always returned to the same position, improving ease of use and wall organization.

Apartment Bathroom

Apartment Bathroom - In apartment installations where space efficiency is important, the compact dimensions allow installation without interfering with shower enclosures or doors. The standardized threaded interface supports consistent installation across multiple units, reducing setup time and maintenance requirements for property managers.

Rental Property

Rental Property - Rental environments often experience varied user behavior and inconsistent handling. The fixed, non-adjustable design eliminates moving components that could loosen or fail. The solid metal body absorbs placement force effectively, supporting durability and reducing the likelihood of service calls over extended rental periods.

Guest Bathroom

Guest Bathroom - In guest-use bathrooms, clear functionality and predictable placement are important. This holder provides an intuitive docking point that allows users to return the sprayer easily after use. The polished surface maintains a clean appearance under intermittent use and simplifies routine cleaning between guests.

Compact Shower

Compact Shower - In small or enclosed shower cabins, minimizing obstruction is critical. With limited projection from the wall, this holder keeps the sprayer close to the surface when not in use, preserving movement space and reducing the risk of accidental contact during entry or exit.

Renovation Project

Renovation Project - During bathroom renovation work, replacing existing fittings without modifying wall plumbing is often required. This holder’s standard thread allows direct replacement, while its clean, geometric form integrates well with modern renovation styles emphasizing simplicity and straight lines.

Secondary Bathroom

Secondary Bathroom - In secondary or low-frequency-use bathrooms, reliability and low maintenance are key priorities. This hand held shower sprayer holder provides stable performance without adjustment mechanisms that could degrade over time. Its solid construction and fixed geometry ensure dependable operation even after long periods of inactivity.
